Manage the devices you added that can deploy multiple dApps, such as SenseCAP M4 Square. Device module is upgraded from FluxNode module, the FluxNode you added before has been automatically upgraded to Device. The Device module manages devices that can deploy multiple dApps; SenseCAP M4 Square support Helium Hotspot deployments, so you can manage the device’s Helium dApps in the Hotspot module, but you must add the device to the Device module to manage the other dApps deployed in the device.

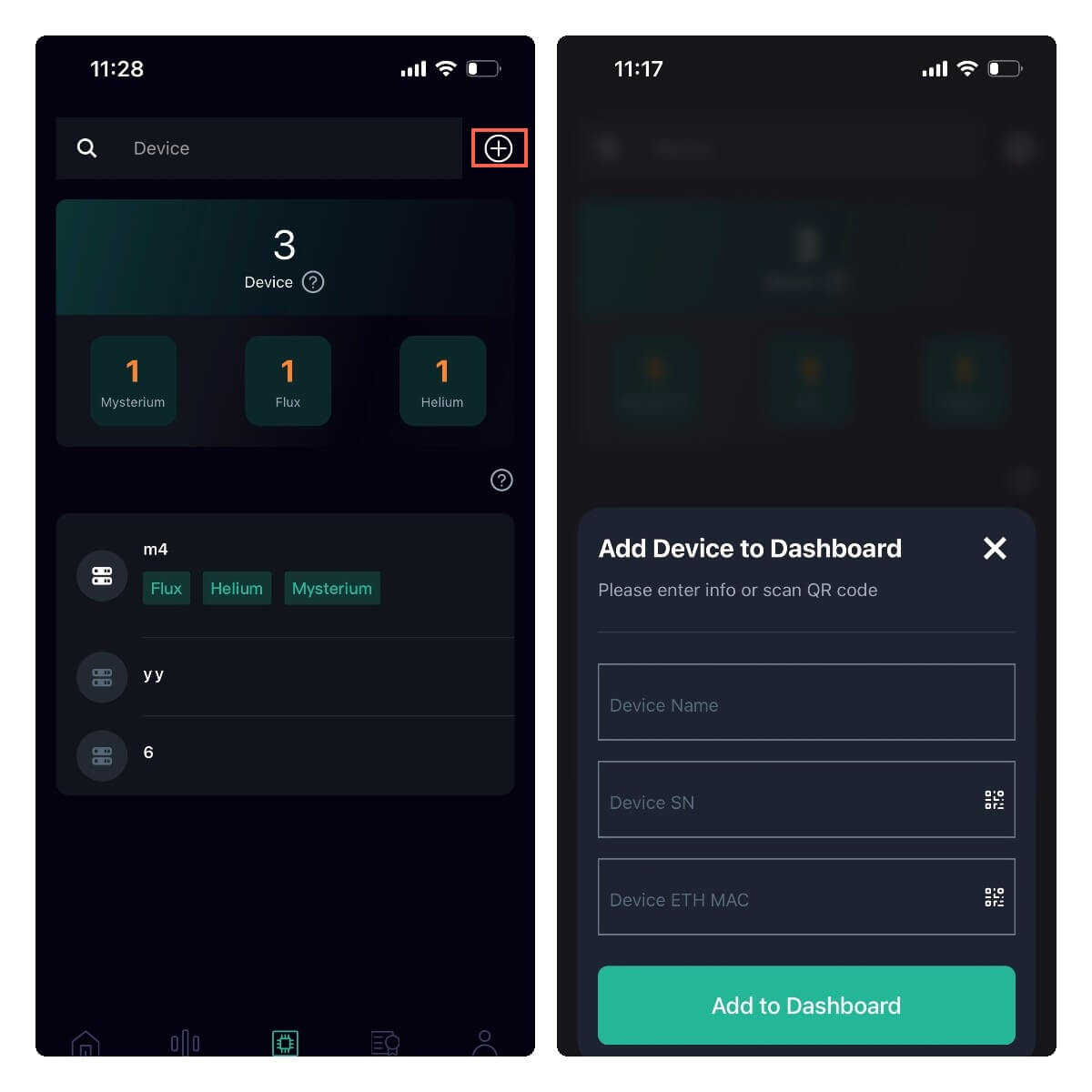

Add New Device
- Visit Device page and click “Add new Device”
- Enter custom device name
- Enter the SN and ETH MAC on the device label
- Click Comfirm button and device added successfully
The device details are divided into two parts: device base info and dApp’s info
Note: The device info is updated every 5 minutes. If you update dApps configuration, refreshing the dashboard in 5~15 minutes will provide updated data.

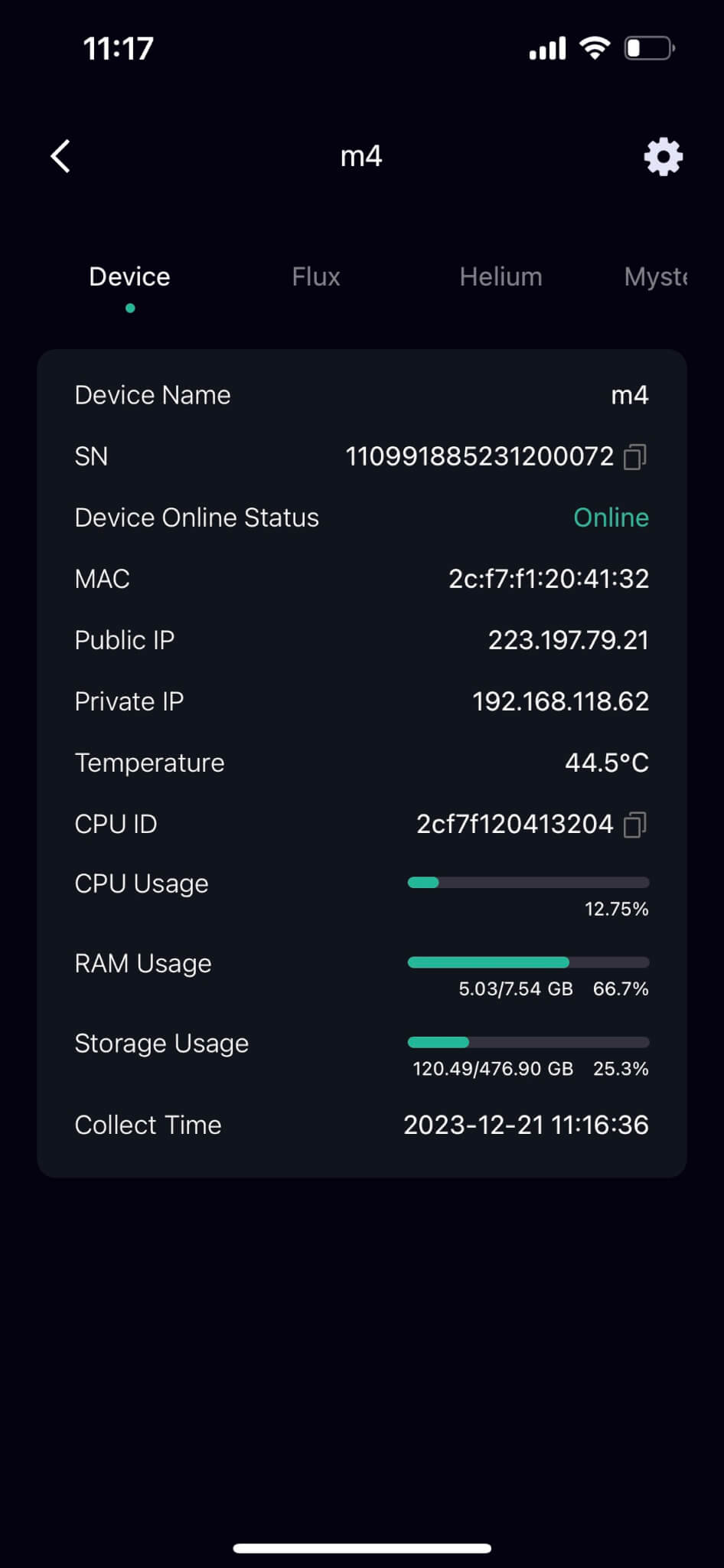

Device info
| SN | Your registered hotspot serial number. |
| Device Name | You custom the device name |
| Online Status | Hotspot info is updated once every 5 mins. Over 30 mins without update, the online status is offline. |
| CPU ID | The CPU ID # of your device CPU. |
| CPU Temperature | Current running temperature of your CPU. |
| CPU Usage | Displays the current usage of the CPU in % units. |
| Memory Usage | Displays the current memory usage in % units. |
| Disk Usage | Displays the current disk usage in % units. |
| Public IP Address | The device’s public IP |
| Private IP | The device is connected with an Ethernet cable, you will see your LAN network address here. |
| Collect Time | Last the data was collected from the hotspot. -UTC. |

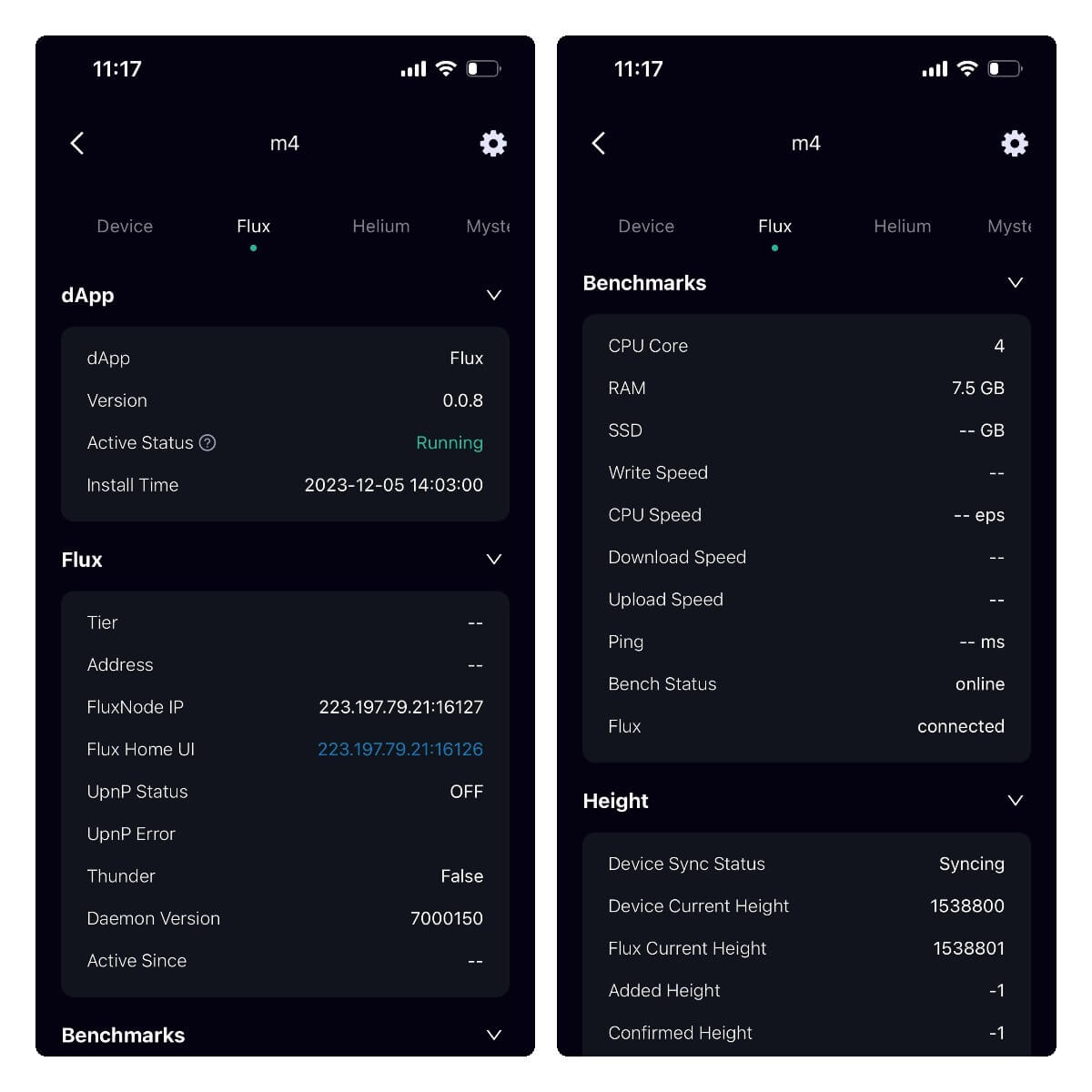

Flux Info
| Running Status | Flux Node running status(from Flux blockchain)DOS: Node is restricted or bannedNot Started: The node is running normally but not confirmed on Zelcore, to click start.EXPIRED: Benchmark is failedSTARTED: Normal operation but not confirmed in the chainCONFIRMED: normal operation |
| Block Sync Status | Flux Block Sync Status(from Flux blockchain) |
| Tier | The Flux Node’s tier and SenseCAP M4 Square is the CUMULUS Node |
| Address | Flux Node address |
| Rank | The rank of the flux node, when the rank is 1 node will get the reward |
| Thunder | Whether Flux Node has Thunder enabled or notFalse: not enabledTure: Enabled |
| Upnp Status | Whether Flux Node has Upnp enabled or notOff: Not enabledOn: Enabled |
| Flux Backend API | Flux Node’s backen API port |
| Flux Home UI | Flux Node’s flux home ui port, you can |
| Public IP | Flux Node’s public IP |
| Upnp Errors | If the device is Upnp enabled and there is an error, the error will be displayed here and you can set the device according to the error. |
| Deamon Version | Flux Node official software deamon version |
| Active Since | The Flux Node active time |
| Flux | The communication status of benchmark and FluxOSConnect：Benchmark is connecting FluxOS Disconnect: Benchmark is not connect FluxOS |
| Benchmard Status | Running status of Flux Node benchmark |
| Error | Info on benchmark errors, you can set up the device according to the errors |
| Added Height | The height of the block when the Flux Node is added to the blockchain |
| Confirmed Height | The height of the block when the Flux Node is confirmed by the blockchain |
| Last Confirmed Height | The height of the block when the Flux Node is last confirmed by the blockchain |
| Last Paid Height | The height of the block when the Flux Node is last paid by the blockchain |
Mysterium Info
Mysterium dApp needs to be activated by license, during the valid time Mysterium dApp can provide dVPN for Mysterium network, over the valid time need to use license renewal otherwise Mysterium dApp will no longer provide dVPN for Mysterium network. Mysterium dApp info is divided into two parts: dApp info and Mysterium node info .
| Node Identity | Node Identity is Mysterium node unique identity. |
| Public IP | Public IP of Mysterium Node; If you enable your network router’s 4449 port, youcan click to access the Node UI |
| LAN IP | LAN IP of the Mysterium Node; if your terminal and the device are on the same LAN, you can click to access the Node UI |
Note: More Myseterium node info please visit your Mysterium Node UI.Mysterium Node UI url is public IP:4449
