Manage the devices you added that can deploy multiple dApps, such as SenseCAP M4 Square. Device module is upgraded from FluxNode module, the FluxNode you added before has been automatically upgraded to Device
Note:The Device module manages devices that can deploy multiple dApps; SenseCAP M4 Square support Helium Hotspot deployments, so you can manage the device’s Helium dApps in the Hotspot module, but you must add the device to the Device module to manage the other dApps deployed in the device.

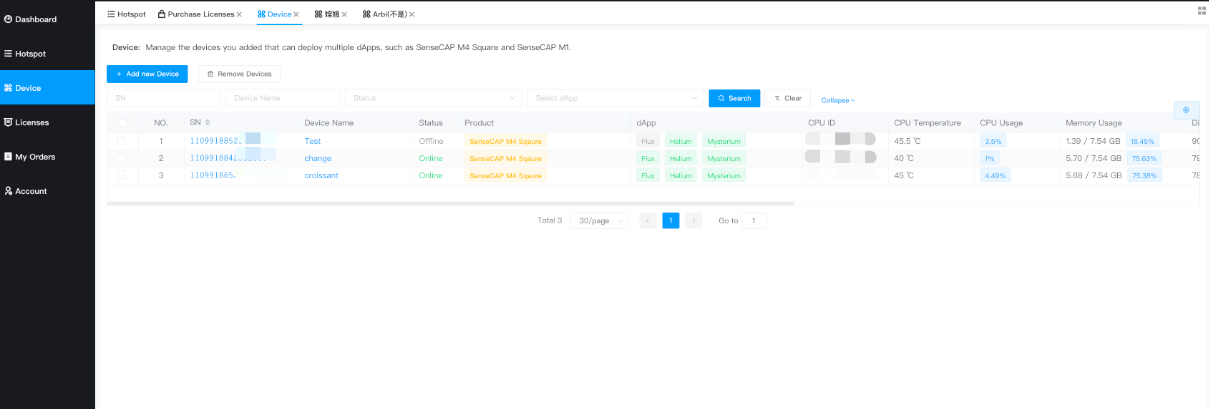

Add New Device
- Visit Device page and click “Add new Device”
- Enter custom device name
- Enter the SN and ETH MAC on the device label
- Click Comfirm button and device added successfully
Device Detail
The device details are divided into two parts: device base info and dApp’s info
Note: The device info is updated every 5 minutes. If you update dApps configuration, refreshing the dashboard in 5~15 minutes will provide updated data.

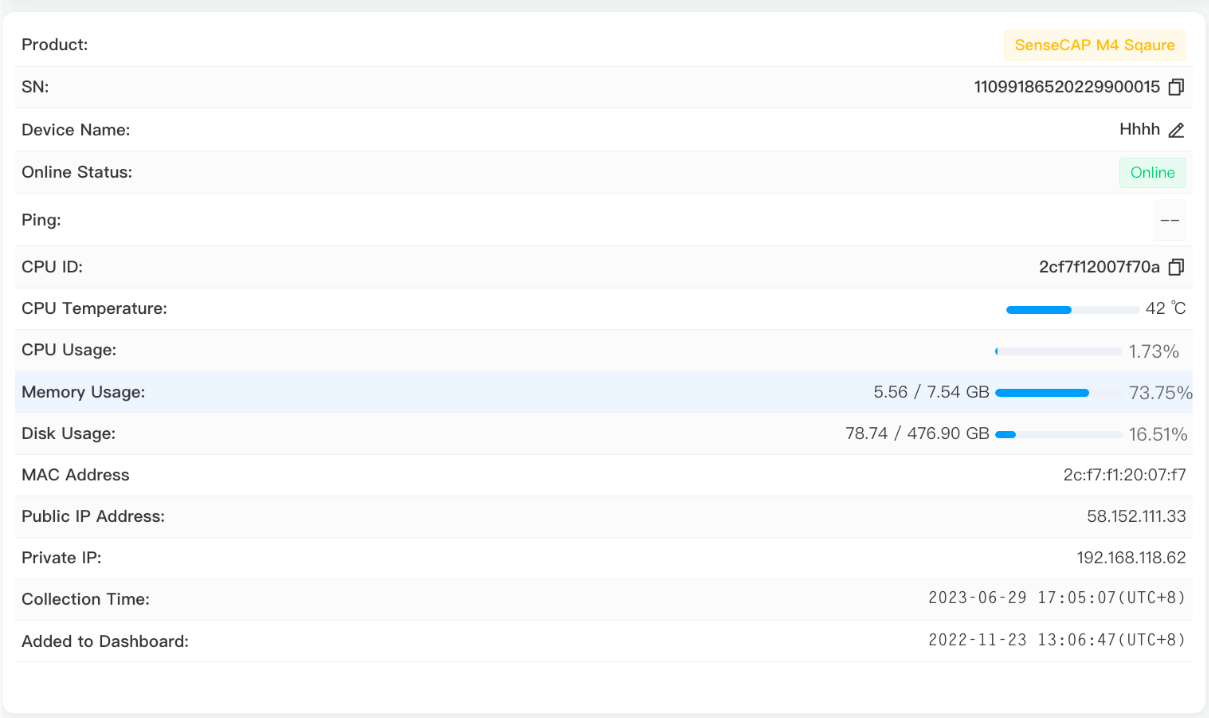

Basic info
| SN | Your registered hotspot serial number. |
| Device Name | You custom the device name |
| Online Status | Hotspot info is updated once every 5 mins. Over 30 mins without update, the online status is offline. |
| Ping | The device ping Google DNS server time |
| CPU ID | The CPU ID # of your device CPU. |
| CPU Temperature | Current running temperature of your CPU. |
| CPU Usage | Displays the current usage of the CPU in % units. |
| Memory Usage | Displays the current memory usage in % units. |
| Disk Usage | Displays the current disk usage in % units. |
| Public IP Address | The device’s public IP |
| Private IP | The device is connected with an Ethernet cable, you will see your LAN network address here. |
| Collect Time | Last the data was collected from the hotspot. -UTC. |
| Production Time | Displays when the hotspot was manufactured. -UTC |

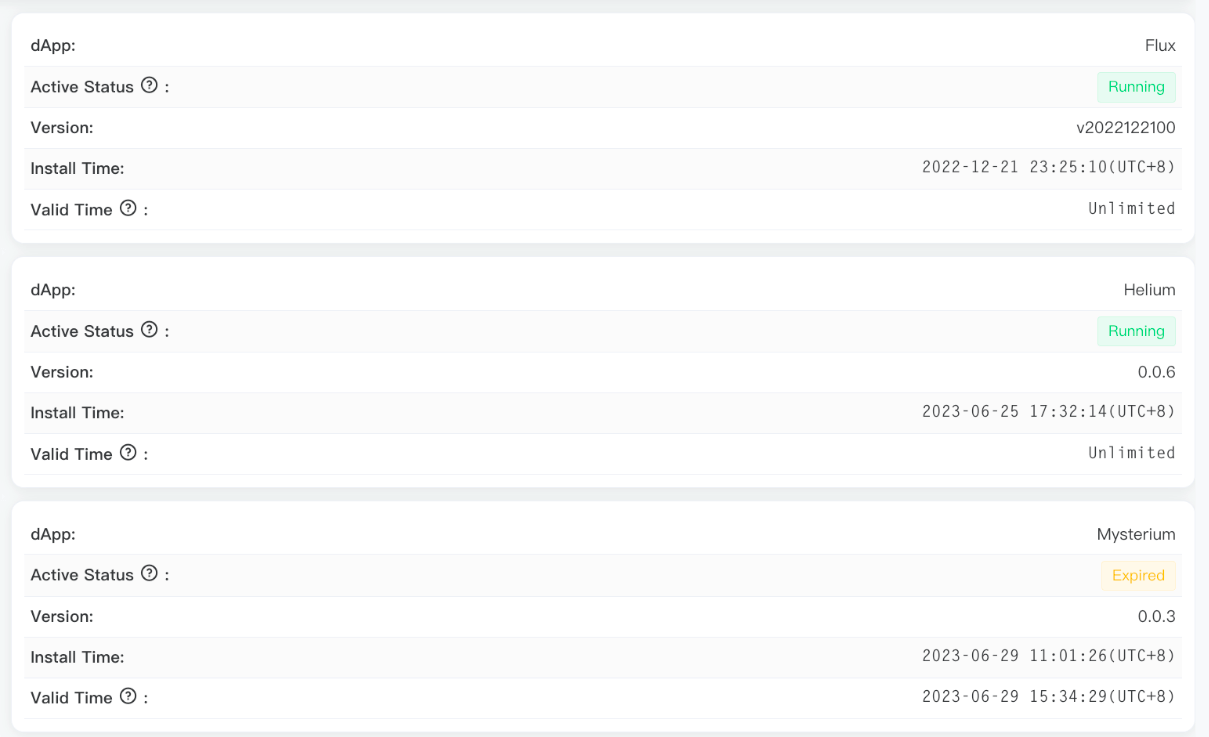

dApp list
| dApp | All released dApps in SenseCAP dApp Center, currently including Flux, Helium, Mysterium, and more dApps will be released gradually. |
| Active Status | dApp’s active status has following status Uninstall: dApp is not installed
Inactive: dApp is installed and needs to be activated by licenses Running: dApp is running Expired: dApp expired and need to renewal by licenses |
| Version | The dApp’s version on the device |
| Install Time | Time to install the dApp on the device |
| Valid Time | dApp can run until the valid time. once over the valid time, the dApp will be expired.
Flux and Helium dApp is free to deploy for SenseCAP M4, so their valid time are unlimited. |

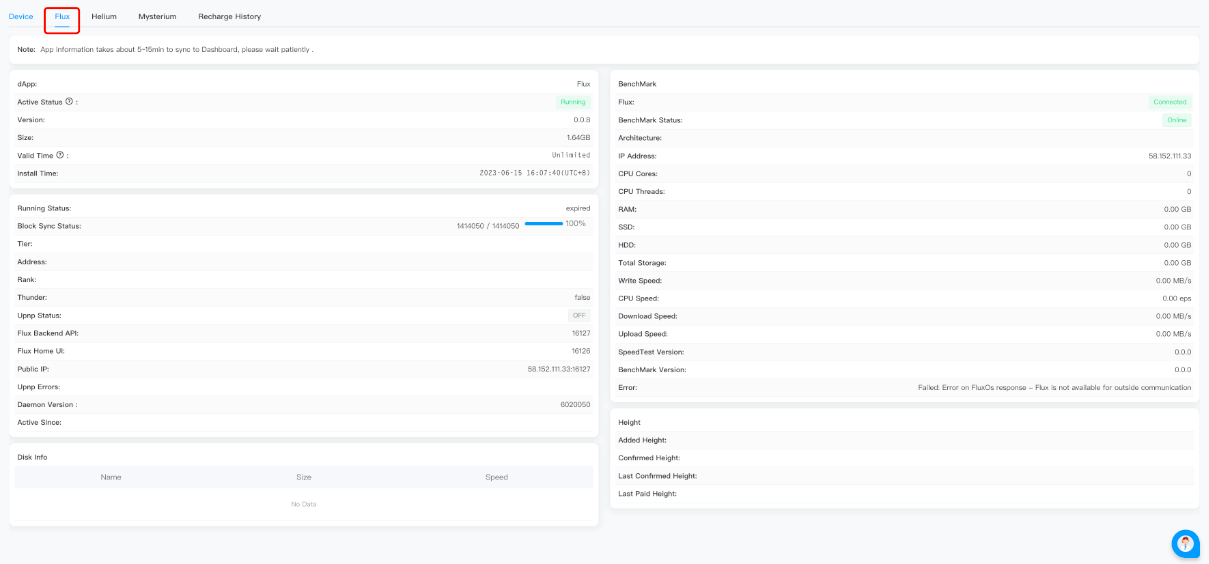

Flux
Flux dApp info is divided into two parts: dApp info and Flux Node info
- dApp info please refer to dApp List Info
Flux Node Info
| Running Status | Flux Node running status(from Flux blockchain)
DOS: Node is restricted or banned Not Started: The node is running normally but not confirmed on Zelcore, to click start. EXPIRED: Benchmark is failed STARTED: Normal operation but not confirmed in the chain CONFIRMED: normal operation |
| Block Sync Status | Flux Block Sync Status(from Flux blockchain) |
| Tier | The Flux Node’s tier and SenseCAP M4 Square is the CUMULUS Node |
| Address | Flux Node address |
| Rank | The rank of the flux node, when the rank is 1 node will get the reward |
| Thunder | Whether Flux Node has Thunder enabled or not
False: not enabled Ture: Enabled |
| Upnp Status | Whether Flux Node has Upnp enabled or not
Off: Not enabled On: Enabled |
| Flux Backend API | Flux Node’s backen API port |
| Flux Home UI | Flux Node’s flux home ui port, you can |
| Public IP | Flux Node’s public IP |
| Upnp Errors | If the device is Upnp enabled and there is an error, the error will be displayed here and you can set the device according to the error. |
| Deamon Version | Flux Node official software deamon version |
| Active Since | The Flux Node active time |
| Flux | The communication status of benchmark and FluxOS
Connect：Benchmark is connecting FluxOS Disconnect: Benchmark is not connect FluxOS |
| Benchmard Status | Running status of Flux Node benchmark |
| Error | Info on benchmark errors, you can set up the device according to the errors |
| Added Height | The height of the block when the Flux Node is added to the blockchain |
| Confirmed Height | The height of the block when the Flux Node is confirmed by the blockchain |
| Last Confirmed Height | The height of the block when the Flux Node is last confirmed by the blockchain |
| Last Paid Height | The height of the block when the Flux Node is last paid by the blockchain |

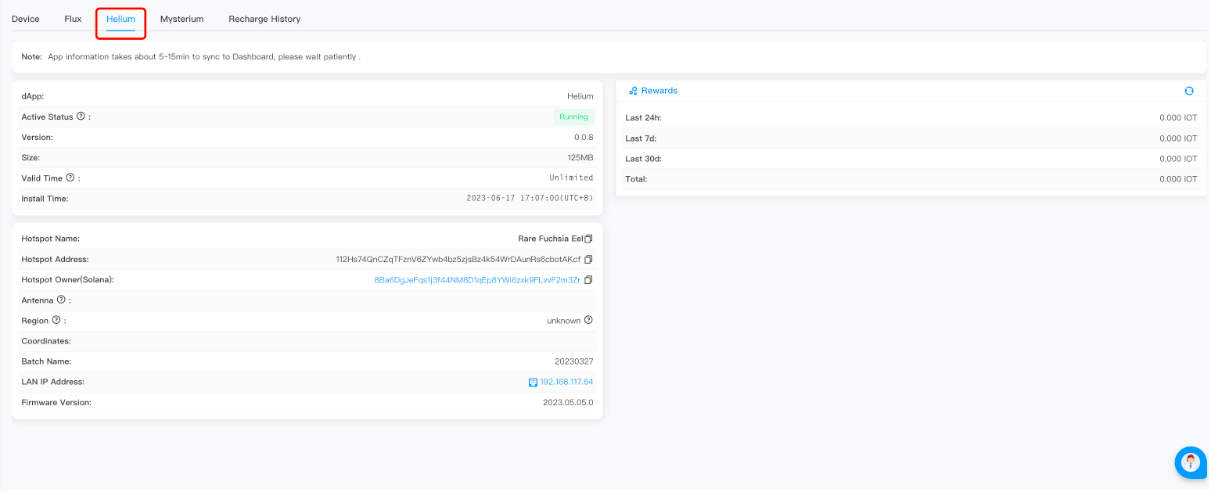

Helium
Helium dApp info is divided into two parts: dApp info and Helium hotspot info
- dApp info please refer to dApp List Info
- Helium Hotspot info please refer to Hotspot Detail

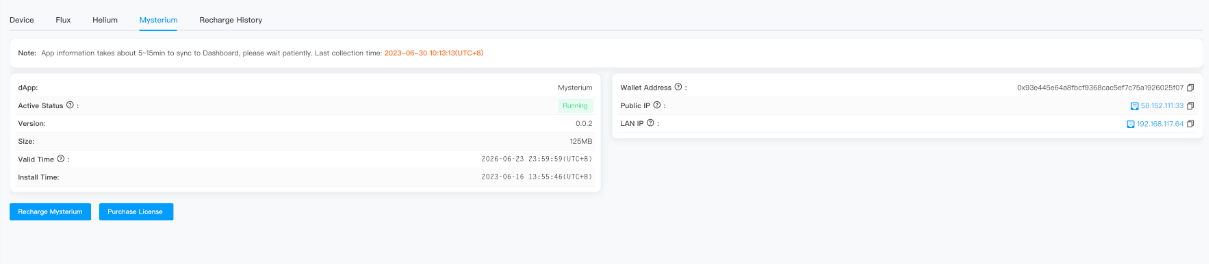

Mysterium
Mysterium dApp needs to be activated by license, during the valid time Mysterium dApp can provide dVPN for Mysterium network, over the valid time need to use license renewal otherwise Mysterium dApp will no longer provide dVPN for Mysterium network.
Mysterium dApp info is divided into two parts: dApp info and Mysterium node info .
- dApp info please refer to dApp List Info
Mysterium Node Info
| Node Identity | Node Identity is Mysterium node unique identity. |
| Public IP | Public IP of Mysterium Node; If you enable your network router’s 4449 port, youcan click to access the Node UI |
| LAN IP | LAN IP of the Mysterium Node; if your terminal and the device are on the same LAN, you can click to access the Node UI |
Note: More Myseterium node info please visit your Mysterium Node UI.Mysterium Node UI url is public IP:4449

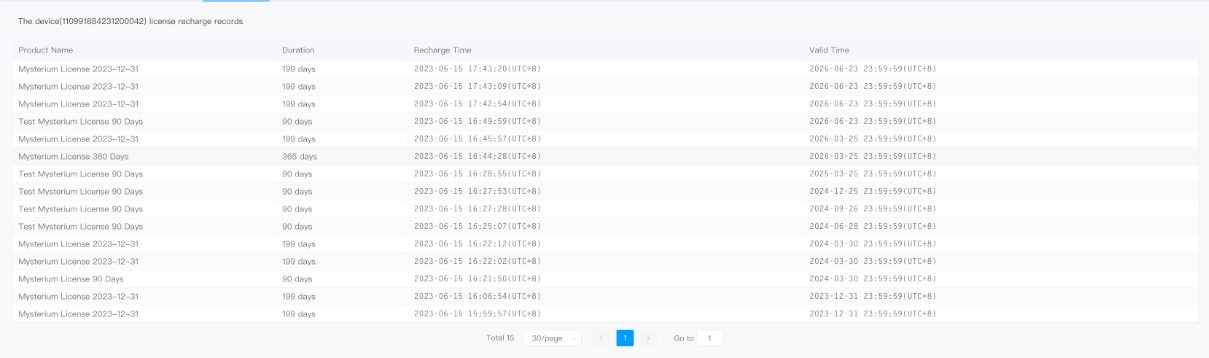

Recharge History
Record all licenses used on this device.
